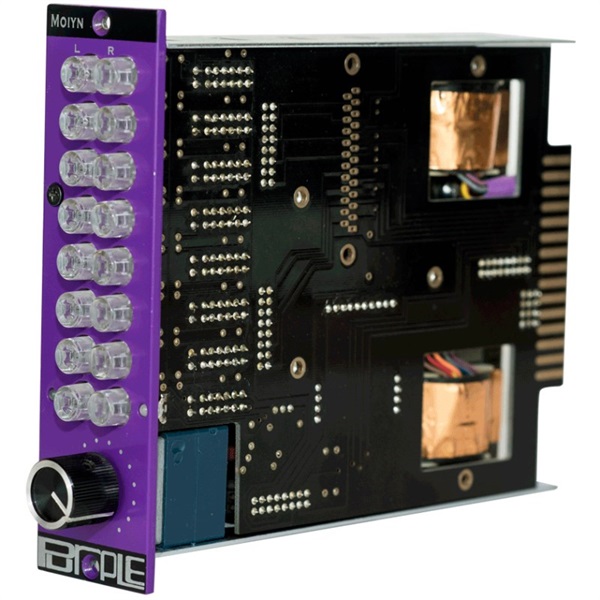

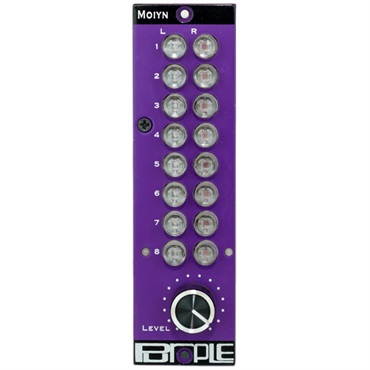

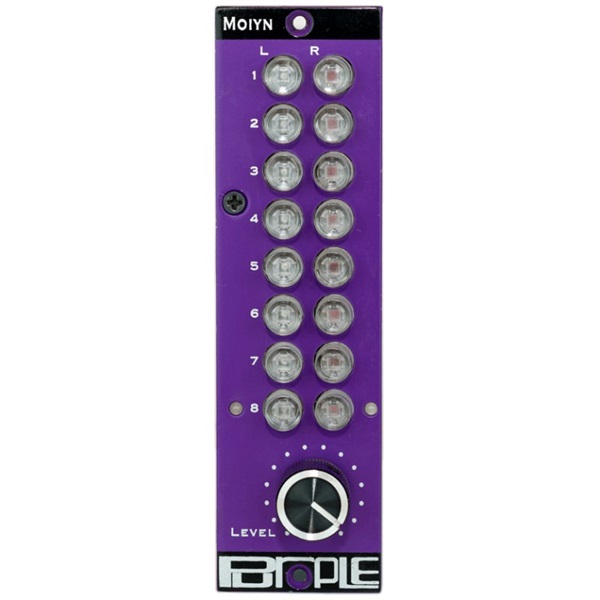

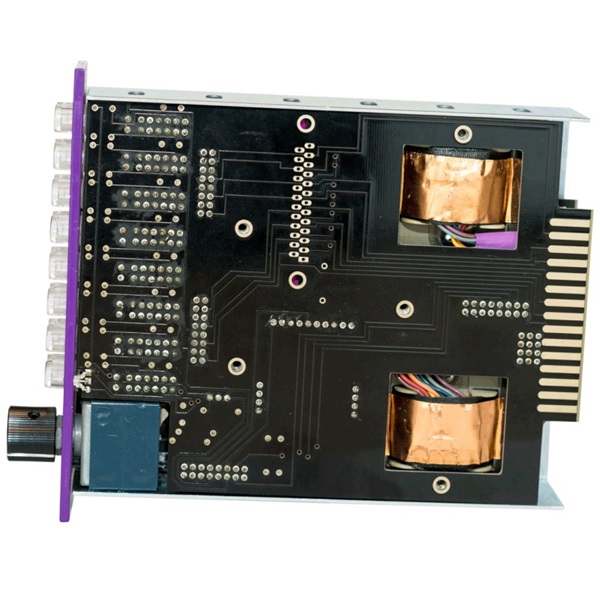

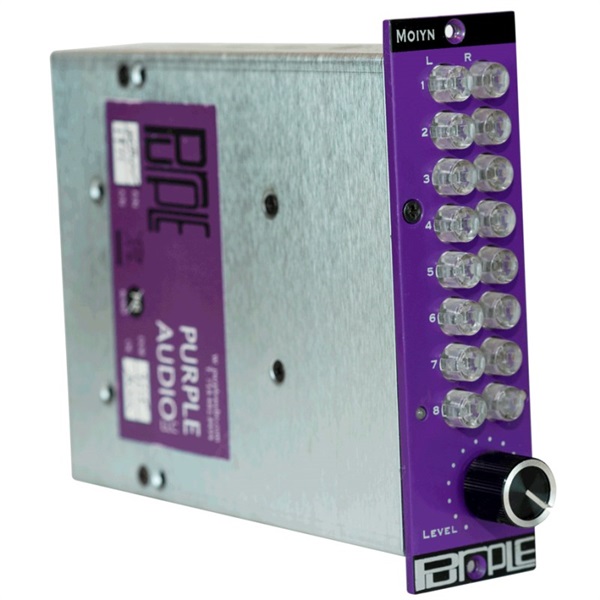

★An all-discrete 8 channel summing amp. Only for the Purple Audio Sweet Ten.
The Moiyn makes the Sweet Ten into a 8×2 mixer.
The Moiyn only works in slot 9 of the Purple Audio Sweet Ten rack.
With the Moiyn installed into slot 9 of the Sweet Ten， slots 1 through 8 become input modules to the Moiyn. Because of the Moiyn’s differential summing input amplifiers， any standard module can be used in slot 1 through 8 with minimal loading， and without unbalancing their outputs. This means that even while you use the Moiyn to sum the outputs of the modules in slots 1 through 8， you can still take the slot 1 through 8 output XLRs to your DAW or tape machine.
■Features
Discrete signal path (2 KDJ3 - Summing Amplifiers， 2 KDJ4 Output Amplifiers]
Differential Summing Amplifier
15K drop on resisters
Stereo Balanced Inject
8 Input Left/Right Assignable
Current consumption: 90mA
Discrete signal path
Over Current Resettable Fused (prevents any module problem from affecting your rack
ROHS - Lead Free
